Bearing Mounted Products

B E Asia Pvt Ltd is one of the leading bearing and mounted products supplier in India and accross globe, we deal with many companies and our products range as follow.

Product Range

DEEP GROVE BALL BEARINGS

View Product Range

Product Range

Single-row deep groove ball bearings are the most common type of rolling bearings. Their use is very widespread. In addition to open type bearings, these bearings often have steel shields or rubber seals installed on one or both sides and are pre-lubricated with grease. Also, snap rings are sometimes used on the periphery. As to cages, pressed steel ones are the most common. For big deep groove ball bearings, machined brass cages are used. Machined cages are also used for high speed applications

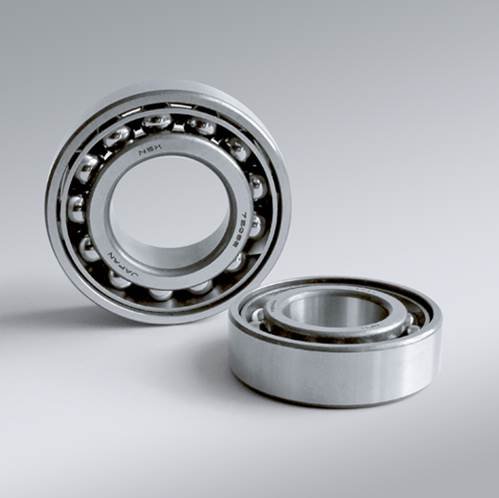

ANGULAR CONTACT BALL BEARINGS

View Product Range

Product Range

The NSK range of angular contact ball bearings has been designed to meet the increasingly demanding requirements of original equipment manufacturers. These bearings have a contact angle so that they can sustain significant axial loads in one direction together with radial loads. Furthermore, since an axial component is generated when a radial load is applied, these bearings are generally used in pairs, triplex sets, quadruplex sets, or multiplex sets. NSK offers one of the most comprehensive ranges of angular contact ball bearings available.

SELF ALIGNING BALL BEARINGS

View Product Range

Product Range

This type of ball bearing is recommended when alignment of the shaft and housing is difficult and the shaft may flex. The outer ring has a spherical raceway and its center of curvature coincides with that of the bearing; therefore, the axis of the inner ring, balls and cage can deflect to some extent around the bearing center. Pressed steel cages are usually used. Since the contact angle is small, the axial load capacity is low. The permissible dynamic misalignment is approximately 0.07 to 0.12 radian (4 to 7 degrees) under normal loads.

THRUST BALL BEARINGS

View Product Range

Product Range

Thrust ball bearings are classified into those with flat seats or aligning seats depending on the shape of the outer ring seat (housing washer). They can sustain axial loads but no radial loads. For Single-Direction Thrust Ball Bearings, pressed steel cages and machined brass cages are usually used The cages in Double- Direction Thrust Ball Bearings are the same as those in Single-Direction Thrust Ball Bearings of the same diameter series.

SPHERICAL ROLLER BEARINGS

View Product Range

Product Range

Spherical Roller bearings are designed for carrying high loads along with RPM & angular Misalignment as well. They can carry high load capacity, features low torque, and has a high-strength cage. An oil groove and holes are provided in the outer ring to supply lubricant for ease of operation.

CYLINDRICAL ROLLER BEARINGS

View Product Range

Product Range

In bearings of this type, the cylindrical rollers are in linear contact with the raceways. They have a high radial load capacity and are suitable for high speeds. The outer and inner rings of all types are separable.

CYLINDRICAL ROLLER BEARINGS

View Product Range

Product Range

TAPER ROLLER BEARINGS

View Product Range

Product Range

Bearings of this type use conical rollers guided by a back-face rib on the cone. These bearings are capable of taking high radial loads and axial loads in one direction

Depending upon the contact angle, tapered roller bearings are divided into three types; normal angle, medium angle, and steep angle.

Double-row and four-row tapered roller bearings are also available. Pressed steel cages are generally used

NEEDLE ROLLER BEARINGS

View Product Range

Product Range

Needle roller bearings are a bearing that is classified as either radial or thrust depending on the direction of the load being supported. Needle roller bearings include bearings whose rollers slightly exceed the size range of needle rollers as stipulated by ISO. Needle roller bearings include drawn cup and solid radial bearings, as well as application-specific cam followers, and roller followers. Thrust bearings include thrust needle bearings.

PLUMMER BLOCKS

View Product Range

Product Range

To ensure effective sealing, plummer blocks are available with a variety of special sealing options and end covers. Benefits include a facility for easy mounting and dismounting of pre-assembled shafts

Plummer block housings can be used with high-capacity spherical roller bearings or self-aligning ball bearings. They are manufactured from high-strength cast iron as standard but are also available in cast steel or spheroidal graphite cast iron. The housings have a re-lubrication facility and can be used with either oil or grease lubrication.

BALL BEARING UNITS

View Product Range

Product Range

The BALL BEARING UNITS is a combination of a radial ball bearing, seal, and a housing of high-grade cast iron or pressed steel, which comes in various shapes. The outer surface of the bearing and the internal surface of the housing are spherical, so that the unit is self-aligning. The inside construction of the ball bearing for the unit is such that steel balls and retainers of the same type as in series 62 and 63 of the deep groove ball bearing are used. A duplex seal consisting of a combination of an oil-proof synthetic rubber seal and a slinger is provided on both sides.

SUPER PRECISION BEARINGS

View Product Range

Product Range

NSK offers a wide lineup of precision angular contact ball bearings where customers to choose the optimum specification of bearing according to the needs of their application. NSK precision angular contact ball bearings provide the perfect solution for applications requiring high runout accuracy of rotating machine parts, such as the machine tool main spindles, or the application of faster rotating speeds

Download Our Company Profile (zip)

About Our Company

B E Asia Pvt Ltd established in 2011, has built its reputation on the cornerstones of high quality products, customer satisfaction & superior services. We marked our presence all across the globe by catering to its clientele in various countries and applications including Chemical, Petrochemical, Fertilizers, Refineries, Pharmaceutical, Food & Beverages, Biotech, Oil & Gas, Paper, Steel, Cosmetics & Textile industries.
